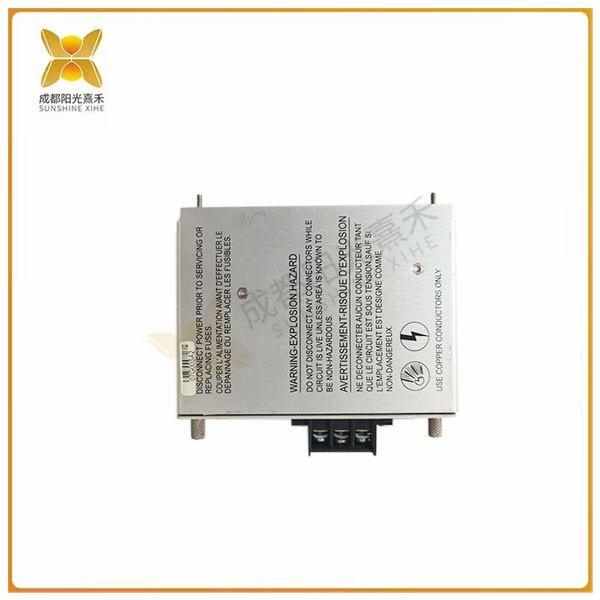

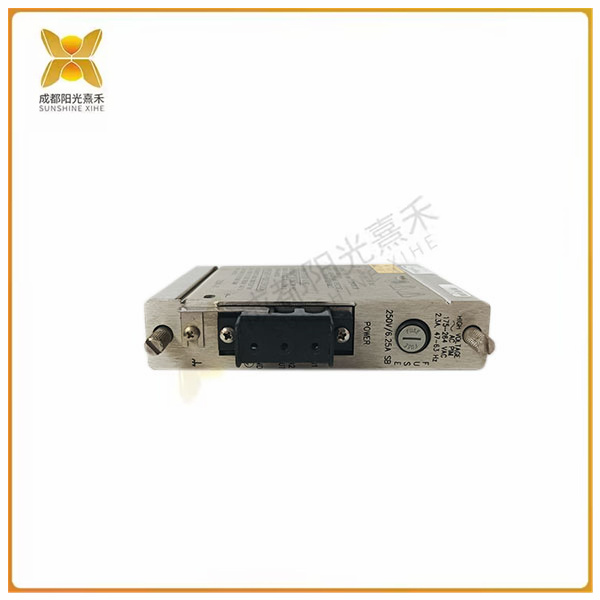

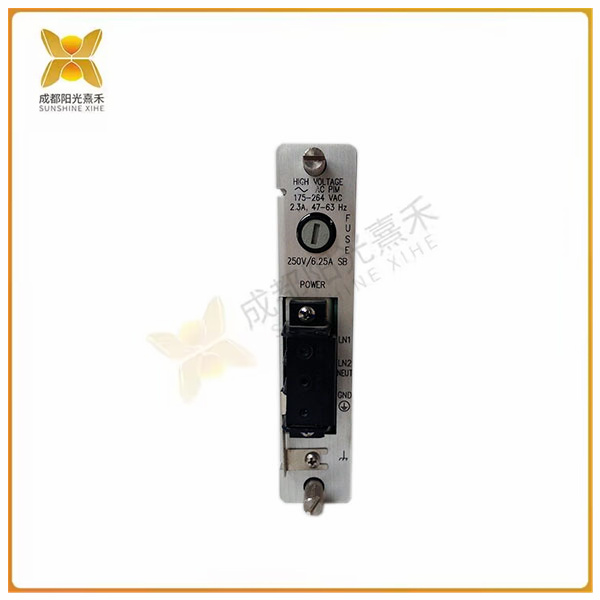

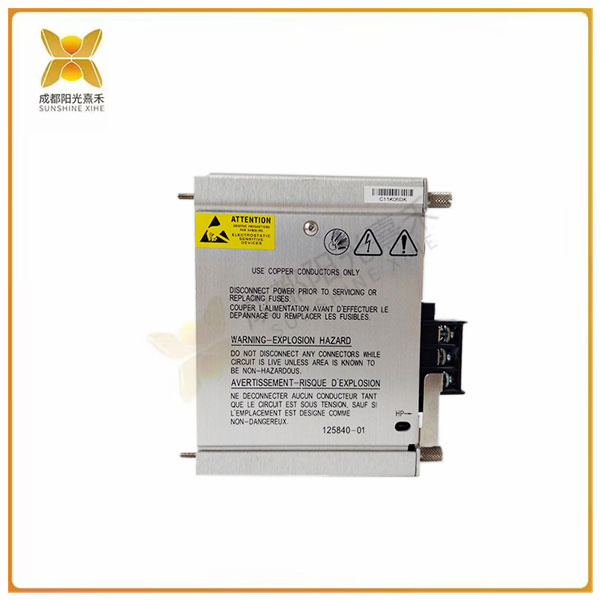

>>>>>型号:125840-01 高压交流电源输入模块 瞬态数据接口模块
【功能描述】
特征：
半高模块
3500 系列机架可以包含一个或两个电源
（3） 制造的版本
Bently Nevada 3500/15 系列电源是半高模块，必须安装在机架左侧专门设计的插槽中。3500 机架可以包含一个或两个电源（交流和/或直流的任意组合），任一电源都可以为整个机架供电。如果已安装，则第二个电源将充当主电源的备用电源。当一个机架中安装两个电源时，下部插槽中的电源充当主电源，上部插槽中的电源充当备用电源。只要安装了第二个电源，卸下或插入任一电源模块都不会中断机架的运行。
3500 电源接受各种输入电压，并将其转换为其他 3500 模块可接受的电压。3500 系列机械保护系统提供三种电源版本，如下所示：1. 交流电源，2. 高压直流电源 3.低压直流电源。
在 3500 机架中，TDI 位于电源旁边的插槽中。为了持续收集稳态和瞬态动态（波形）数据并通过以太网链路将此数据传输到主机软件，它与 M 系列监视器（3500/40M、3500/42M 等）交互。
TDI 具有传统的静态数据收集功能。然而，TDI 也可以使用可选的通道启用磁盘记录动态、高分辨率的瞬态数据。
功能说明
3500 机架包含 TDI 的通信处理功能。虽然 TDI 执行一些由整个机架共享的任务，但它不是监控系统的关键组件，并且与整个系统监控自主机械保护的效果无关。
每个 3500 机架需要一个 TDI 或 RIM，它始终占用插槽 1。（电源旁边）。
3500 监测系统和兼容软件之间的链接称为 3500/22M 瞬态数据接口 (TDI)（系统 1 状态监测和诊断软件和 3500 系统配置软件）。TDI 将 3500/20 机架接口模块 (RIMfunctionality ) 与通信处理器（如 TDXnet）相结合，以收集数据。
>>>>>型号:125840-01 高压交流电源输入模块 瞬态数据接口模块
【英文介绍】
Features:
Half-height module
The 3500 Series rack can contain one or two power supplies
(3) Manufactured version
The Bently Nevada 3500/15 series power supply is a half-height module that must be installed in a specially designed slot on the left side of the rack. The 3500 rack can contain one or two power supplies (any combination of AC and/or DC), either of which can power the entire rack. If installed, the second power supply acts as a backup to the main power supply. When two power supplies are installed in a rack, the power supply in the lower slot acts as the primary power supply and the power supply in the upper slot acts as the backup power supply. As long as a second power supply is installed, removing or inserting either power module will not interrupt the operation of the rack.
The 3500 power supply accepts a variety of input voltages and converts them to voltages acceptable to other 3500 modules. The 3500 Series mechanical protection system is available in three power supply versions as follows: 1. Ac power, 2. High voltage DC power supply 3. Low voltage DC power supply.
In the 3500 rack, the TDI is located in the slot next to the power supply. It interacts with M-series monitors (3500/40M, 3500/42M, etc.) in order to continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software over an Ethernet link.
TDI has traditional static data collection capabilities. However, TDI can also enable the disk to record dynamic, high-resolution transient data using an optional channel.
Function description
The 3500 rack contains the communication processing capabilities of TDI. While TDI performs some tasks shared by the entire rack, it is not a critical component of the monitoring system and is not relevant to how well the entire system monitors autonomous mechanical protection.
Each 3500 rack requires a TDI or RIM, which always occupies slot 1. (Next to the power supply).
The link between the 3500 monitoring system and compatible software is called the 3500/22M Transient Data Interface (TDI) (System 1 condition monitoring and diagnostic software and 3500 system configuration software). TDI combines 3500/20 rack interface modules (RIMfunctionality) with communication processors such as TDXnet to collect data.
