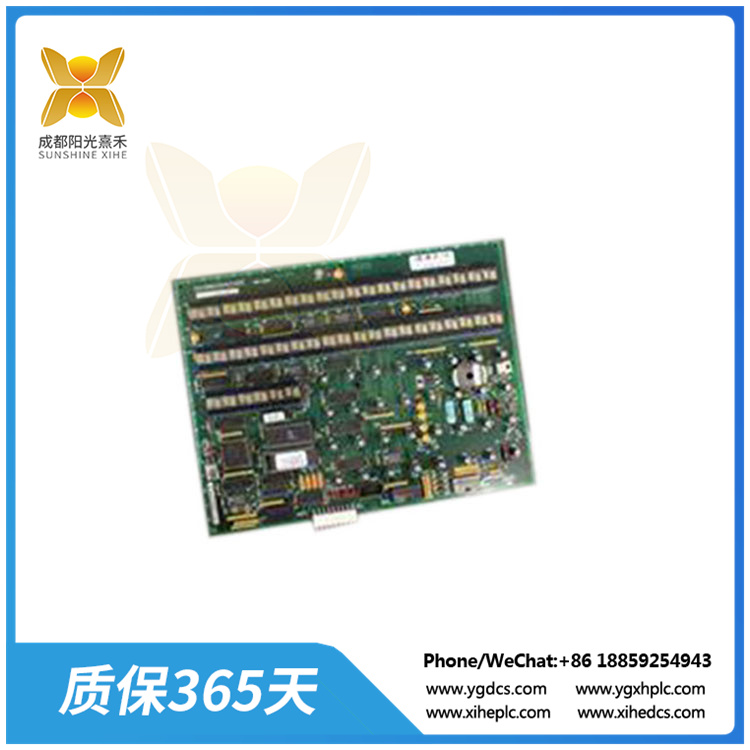

>>>>>型号:DS200UDSAG1ADE 模块
【功能描述】
DS200UDSAG1ADE是一款适用于各种电气系统、电镀、电解行业中的交流大电流的测量和控制的模块。
它采用了Rogowski原理，摒弃了传统的互感器原理或霍尔原理中必须使用的磁芯，这使得产品的输入范围更大，而不影响产品的性能。此外，该模块还具有以下显著特点：
无饱和输入：由于其特殊的Rogowski原理设计，产品的输入范围广泛，可以满足各种大电流的测量需求。
响应时间快：其响应时间可以达到微秒级别，使得它在电力系统中的故障录波等方面具有出色的应用表现。
频响宽：频宽范围可达20kHz以上，适用于输入波形复杂等信号检测。
线性好与精度高：输出的线性度好，能够准确反映输入信号的大小，同时整体精度也保持在1%以内。
体积小、重量轻：相比传统互感器原理和霍尔原理的产品，它在相同输入量程的条件下，体积更小，重量更轻，便于安装和携带。
从结构上看，DS200UDSAG1ADE模块内部配备了一个180196微处理器和几个可擦除可编程只读存储器（EPROM）模块，以及21个4字符显示器和32个LED。这种设计使得模块在处理数据和显示信息时更加高效和直观。
在工作环境方面，该模块对通风和清洁度要求较高。电路板和驱动器必须在通风良好的环境中工作，且周围环境必须干净，没有灰尘、污垢和油污。这有助于确保模块的稳定运行和延长使用寿命。
综上所述，DS200UDSAG1ADE模块凭借其出色的性能、广泛的应用领域和便捷的使用特点，成为了电气系统、电镀、电解行业中的重要测量和控制工具。
>>>>>型号:DS200UDSAG1ADE 模块
【英文介绍】
DS200UDSAG1ADE is a module suitable for the measurement and control of AC high current in various electrical systems, electroplating and electrolysis industries.
It adopts the Rogowski principle and abandons the magnetic core that must be used in the traditional transformer principle or Hall principle, which makes the input range of the product larger without affecting
the performance of the product. In addition, the module has the following notable features:
Non-saturated input: Thanks to its special Rogowski principle design, the product has a wide range of inputs to meet a variety of high current measurement needs.
Fast response time: its response time can reach the level of microseconds, which makes it have excellent application performance in the fault recording of power systems.
Frequency response width: the bandwidth range can reach more than 20kHz, which is suitable for signal detection such as complex input waveform.
Good linearity and high accuracy: the linearity of the output is good, which can accurately reflect the size of the input signal, and the overall accuracy is kept within 1%.
Small volume, light weight: Compared with the traditional transformer principle and Hall principle products, it is smaller in size and lighter in weight under the conditions of the same input range, easy to install and carry.
Structurally, the DS200UDSAG1ADE module is equipped with a 180196 microprocessor and several erasable programmable read-only memory (EPROM) modules, as well as 21 4-character displays and 32 leds. This design
makes the module more efficient and intuitive when processing data and displaying information.
In terms of working environment, the module has high requirements for ventilation and cleanliness. The circuit board and driver must work in a well-ventilated environment and the surrounding environment must be clean
and free of dust, dirt and oil. This helps ensure stable operation and extended service life of the module.
In summary, the DS200UDSAG1ADE module has become an important measurement and control tool in the electrical system, electroplating and electrolysis industries due to its excellent performance, wide range of applications and easy use.
