IS200TBAIH2C |5SHY5045L0020|模拟输入/输出端子板|

IS200TBAIH2C 是通用电气（GE）为 Mark VI 系统制造的一种模拟输入/输出端子板，属于 Mark VI 系列，用于 GE Speedtronic 燃气/蒸汽轮机控制系统 。

这个端子板支持 10 个模拟输入和 2 个模拟输出，模拟输出可以设置为 0-20 mA 或 0-200 mA 电流 。它具有完全独立的控制模块、IONets 和电源，并且设计用于三重模块化冗余（TMR）架构 。

该板卡具备多功能性，提供多种类型的模拟输入和输出，包括两线制、三线制和四线制变送器模拟输入，以及外部供电变送器模拟输入 。

它还具备高精确度处理能力，确保信号的准确度和可靠性，并且输入信号可以灵活配置为电压或电流信号以适应不同的应用需求 。

IS200TBAIH2C 设计用于与 GE Mark VIeS 控制器组件配合使用，具有安全认证，确保了其在工业应用中的安全性 。

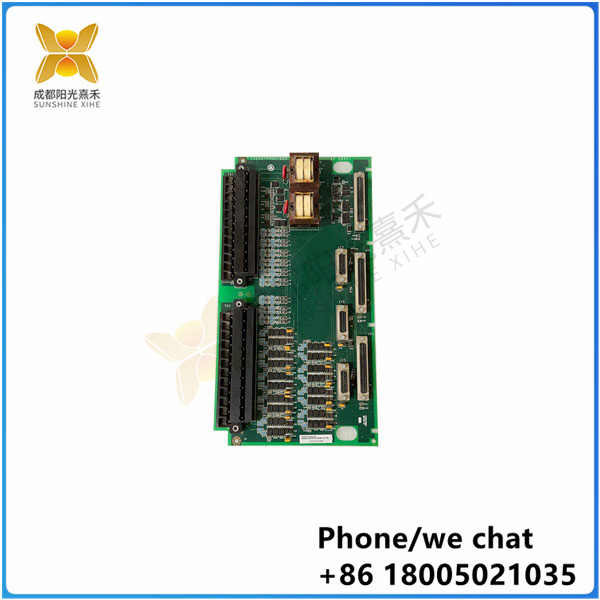

此外，板卡内置了三个 DC-37 针电缆连接器，分别为 JR1、JS1 和 JT1，在 TMR 应用中，输入信号会扇形分布到 R/S/T 控制的三个连接器 。

端子板还内置了两个接线端子（TB1 和 TB2），它们是栅栏式端子块，可以从板上拔下进行维护 。

在安装方面，IS200TBAIH2C 允许将输入和输出线直接连接到端子板上的两个 I/O 端子块，每个端子块都有 24 个端子，可以接受最多 #12 AWG 的电线 。

板卡还包含高抑制电路，以防止高频噪声和浪涌，保护信号的完整性

The IS200TBAIH2C is an analog input/output terminal board manufactured by General Electric (GE) for the Mark VI system, part of the Mark VI series,

or GE Speedtronic gas/steam turbine control systems. This terminal board supports 10 analog inputs and 2 analog outputs, which can be set to 0-20 mA

or 0-200 mA current. It has a fully independent control module, IONets and power supply, and is designed for triple modular redundancy (TMR) architecture.

The board is versatile and offers several types of analog inputs and outputs, including two -,

three - and four-wire transmitter analog inputs, as well as externally powered transmitter analog inputs. It also has high precision processing capabilities

to ensure signal accuracy and reliability, and the input signal can be flexibly configured as a voltage or current signal to suit different application requirements.

The IS200TBAIH2C is designed for use with GE Mark VIeS controller components and is certified for safety, ensuring its safety in industrial applications.

 In addition, three DC-37-pin cable connectors are built into the board, namely JR1, JS1 and JT1, and in TMR applications, the input signal is fanned out

to the three connectors controlled by R/S/T. The terminal board also has two built-in terminal blocks (TB1 and TB2), which are palisade terminal blocks that can be unplugged from the board for maintenance.

In terms of installation, the IS200TBAIH2C allows the input and output lines to be connected directly to two I/O terminal blocks on the terminal board,

 each with 24 terminals, and can accept up to #12 AWG of wire. The board also contains high suppression circuits to prevent high-frequency noise and surges, protecting signal integrity
